Geo-Flo’s 2021 Product Catalog is now available. There are several new products in this catalog release including NP Base non-pressurized flow centers, Magna3 variable speed flow centers, and a 0-10V to PWM controller. An overview of these new products is provided below. We plan on adding many new products to our offering in 2021 so please check our website regularly.

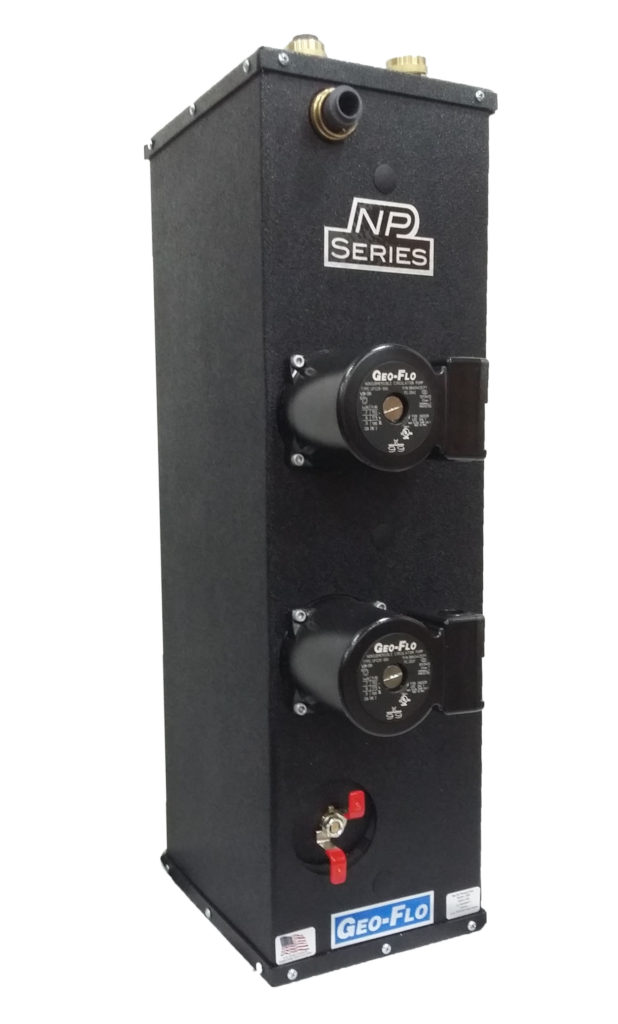

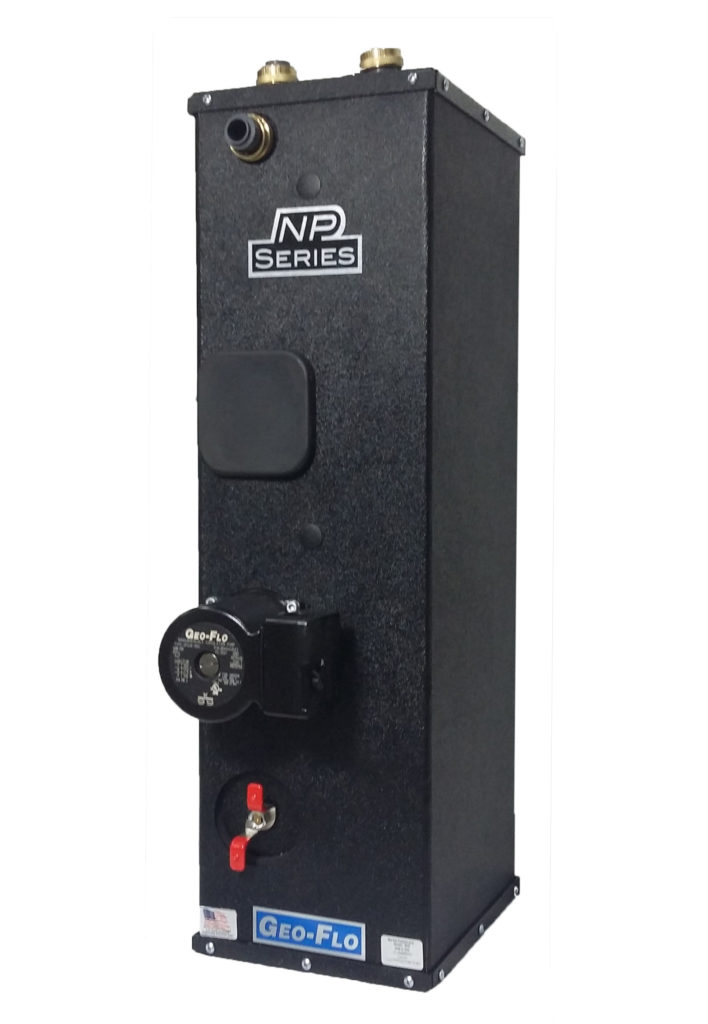

The NP Base (NPB) is a price competitive, base level, non-pressurized flow center useful for contractors that utilize internal headers or prefer to install flush valves separate from the flow center. The NPB includes features of our standard NP line including three-speed UPS26-99 pumps, a threaded sealing cap, pressure & vacuum relief, and a durable ABS plastic cabinet. While the NP and NP Plus include 3-way flush and isolation valves with Flo-Link double O-ring connections, the NPB uses simple isolation ball valves and 1” swivel union connections. The NPB also features front or top plumbing connections on the discharge of the pump for installation flexibility.

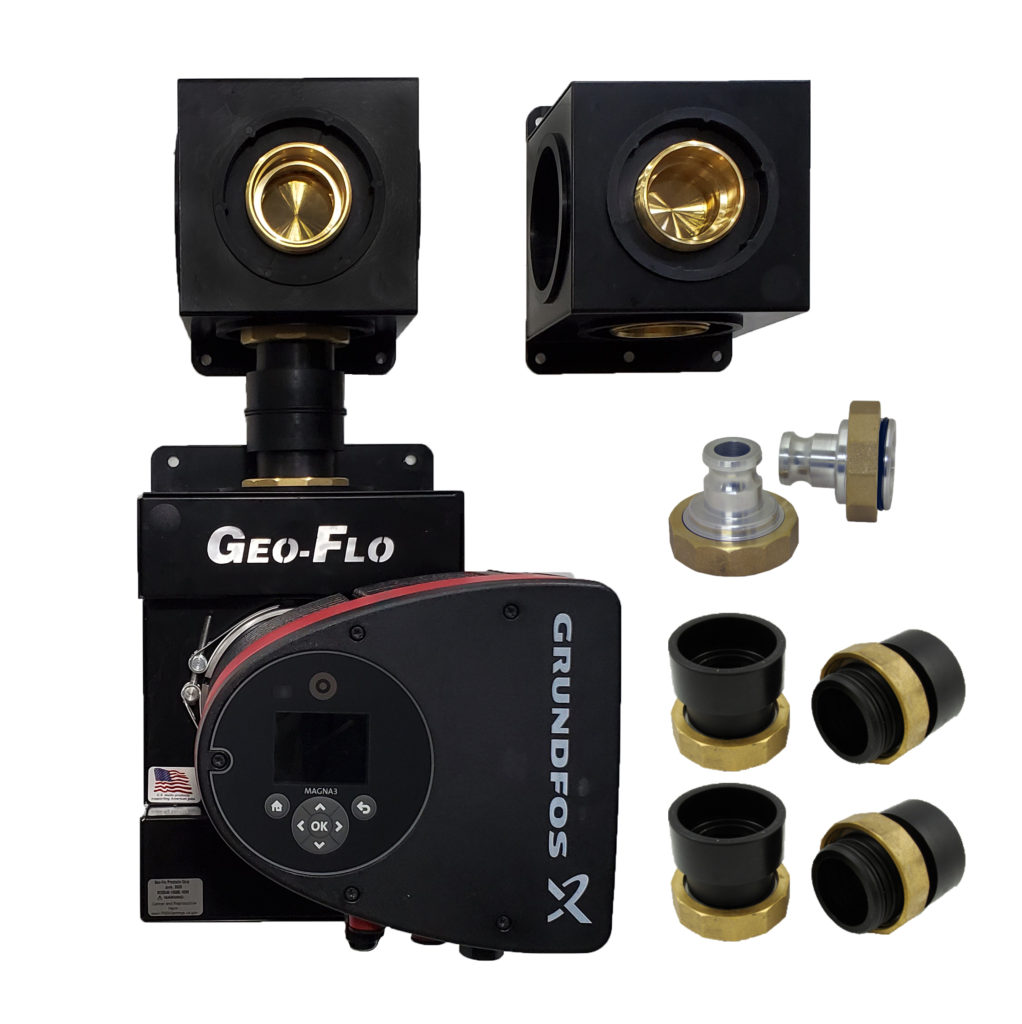

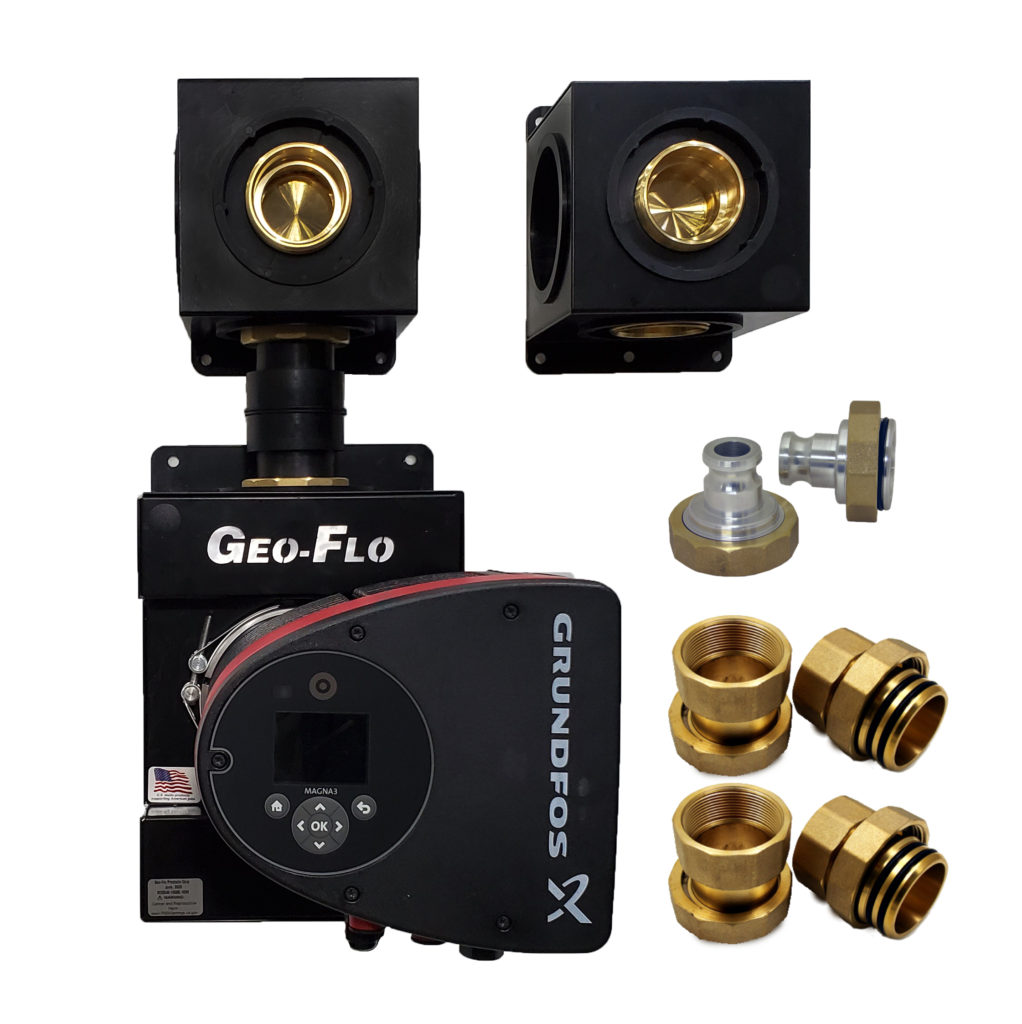

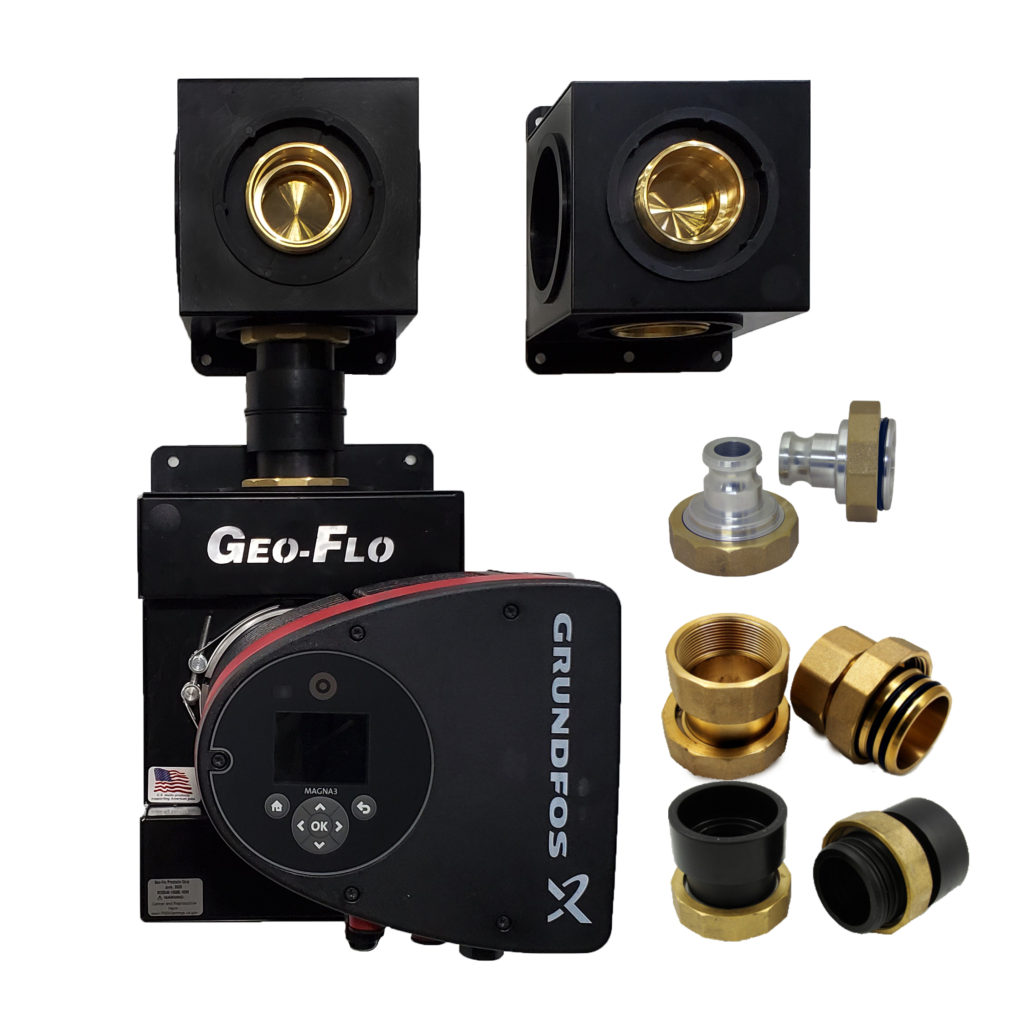

The new Flo-Link XL Magna3 variable speed flow centers feature Grundfos Magna3 ECM pumps with built-in controls useful for multi-heat pump installations. These new products include 2” 3-way 4-position flushing and isolation valves, choice of ground loop and interior plumbing adapters, and flush adapters.
The new ECM 0-10 VDC TO PWM Controller is a compact, microprocessor-based motor speed controller designed to convert a 0-10 Vdc signal to a 0-100% PWM signal to control one or two variable speed ECM pumps. The controller is intended to be used with water-source VRF systems or other systems that output a 0-10 Vdc signal to control a Grundfos UPMXL 25-124 pump or flow center which utilizes a standard PWM profile.
